Application:-

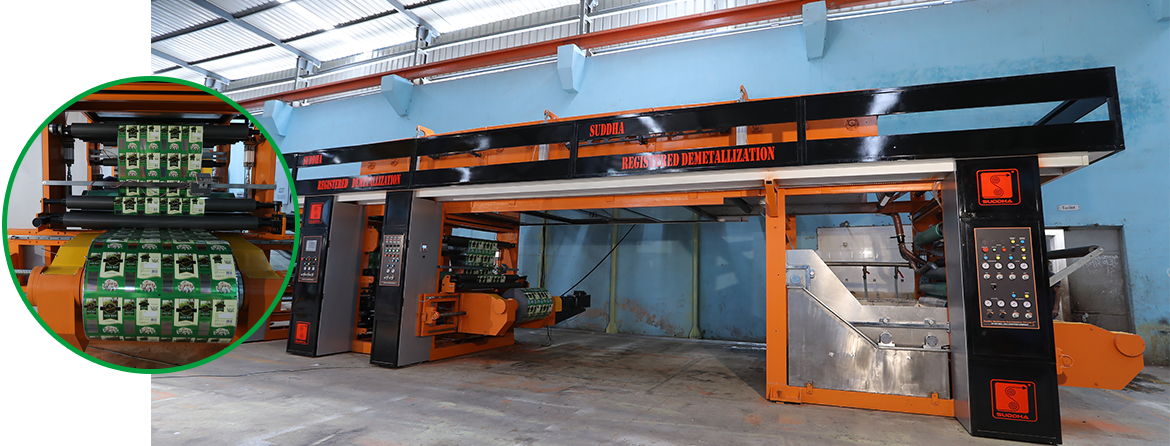

Registered de metallization of flexible laminates through registered Gravure Coating unit and drying after washing the laminates to remove coated area.

Registration accuracy will be +/- 0.5mm at constant speed

Technical Specification:-

Materials To Be Processed 24 mic laminates Up to 50 mic
Max. Un / Rewinder roll dia 1000 mm
Max. Mechanical speed 150 mpm

Coating method

Chemical coating / VMCH / Cold seal - Rotogravure coating method.

General Specification:

  • Unwinder and Rewinder Suitable to adopt 76 / 152 mm Core.

  • Pneumatic application for doctor blade, pinch roller and out feed.

  • Pneumatic application (with liner bearing ) for impression ( rubber ) roller.

  • Motorized spraying system, water filter for water recycling, pinching roller set and a set of air knife to remove water before entering to dryer will be provided with set of rollers.

  • Air Nozzle Distributes uniform Hot air across the working width.

  • Digital vector auto tune, microprocessor controlled synchronous a/c drive. All running parameters of control panel will come through plc.
