Application:-

Solvent based dry lamination of aluminium foil with nylon / pvc film and other substrate by gravure coating system and lamination after specially temp monitored drying application in double operation. A premeasured treatment is required after first lamination.

Technical Specification:-

Materials to be processed

Aluminium foil 30µ - 50µ
Pvc Upto 80µ
OPA Upto 30µ
Max web width 1000 mm
Maximum operating speed 100 mpm

  • Solvent based adhesive application -- Gravure coating system

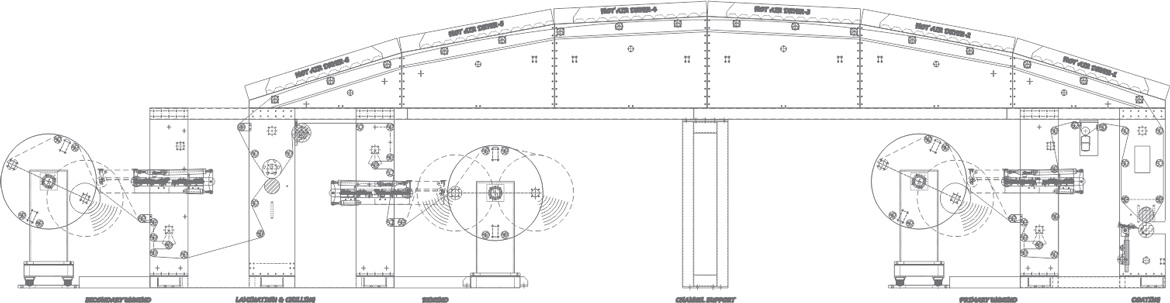

  • Pneumatic application for doctor blade and impression roller, horizontal camel back drying hood, coating and dry lamination nip unit.

  • High velocity drying system equipped with multi zone drying tunnel of proper length and with individual air blower and radiator with plc based three way control valve for better temperature control up to the required temperature.

  • Chilling roller outside top dryer are of specified diameter with spiral circulation to remove the heat from film surface before rewinding.

  • Air nozzles distribute uniform hot air across the wash width and are placed against idle rollers for proper web support

  • Air volumes can be controlled by manual dampers at each station
