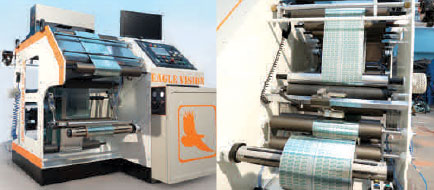

Servo driven Flexo Printing with 360 degree circumferential register adjustment with Online Web Monitoring Camera System

Application:-

This litter rewinder simplex /duplex surface winding machine capable of handling extensive materials with guage variations to high tensile films, specially PET, BOPP and Polythene film at specified speeds. It is designed for easy operation and minimum maintenance,

Technical Specification:-

Material to be processed Paper upto 120 Gsm / Aluminum Foil - 20 mic to 40 mic
Speed 150 Mpm
Repeat length Min 250mm / Max 450mm
Max Unwinder Dia 600 mm
RMax Rewinder Dia 600 mm

Salient Features

  • Unwinder and Rewinder is Driven by 5.5 KW SEW make Geared Motor

  • 76mm Airshaft at Unwinder and Rewinder.

  • Infeed and Outfeed is driven by 2 KW Servo motor with Planetary Gear Box.

  • BST make Edge Guide System to Guide the material till Rewinder.

  • Impression roll is Driven by 5 KW Servo Motor with Planetary Gear Box

  • Stereo roll is driven by 2 KW Servo motor with Planetary Gear Box.

  • When machine is in Idle condition Ink Roll is driven by 0.1 hp motor so that the Ink do not get saturated in the Tray

  • Pneumatically Controlled Doctor Blade unit for Fine Adjustment.

  • Online Web Monitoring System along with Defect Detection System.

  • Micro gap adjustment vertically and horizontally for Stereo Roll.

  • Movable 11 inch Easy Access HMI system for easy operation.

  • Stainless steel hardened and ground plate roll shafts.

  • High capacity dryers with 9 KW Electrical Heating system for each Printing Station

  • Lenze make servo motors and drives
