8 COLOUR ROTO GRAVURE PRINTING MACHINE – SUDDHA THUNDER
Rotogravure Printing Machine,manufacturer of Rotogravure Printing Machine

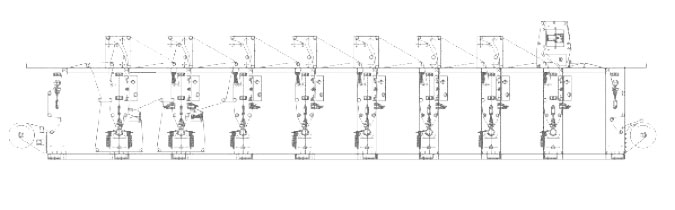

FULL VIEW OF EIGHT COLOUR ROTO GRAVURE PRINTING MACHINE

COMPENSATING ROLL ASSEMBLY ,DOCTORBLADE ASSEMBLY IN OUR GRAVURE PRINTING MACHINE
   COMPENSATING ROLL ASSEMBLY                 DOCTOR BLADE ASSEMBLY

8 COLOUR GRAVURE PRINTING MACHINE – SUDDHA THUNDER
ANGULAR VIEW FROM TOP FOR GRAVURE PRINTING MACHINE
        ANGULAR VIEW FROM TOP                                DRYING HOOD

Application:-Rotogravure Printing Machine

The stack type of 8 colour Rotogravure printing machine, “Suddha Thunder” is used for fine quality of printing on packaging substrate.

Standard Specification:-Rotogravure Printing Machine
  No. of Printing Stations   Maximum up to 10 colours
  Web width range   600 mm to 1200 mm
  Cylinder repeat   400 mm 900 mm
  Un-winder diameter   800 mm Maximum
  Re-winder diameter   800 mm Maximum
  Drying Media   Electrical Heating, Thermic
     Fluid, Hot air Generator
  Designed Line Speed    200 MPM Maximum
Top
Main Frame

The printing machine gives vibration free, noise less and steady production even at maximum speed because of its sturdy and robust construction. The body frame is made of superior grade cast iron material with adequate number of Tie Bars.

Gear Box

Gear Boxes are made of hardened and profile ground gears to transmit power to the Printing Cylinders and Doctor Blade assemblies.

Doctor Blade

Doctor Blade assemblies in the printing stations are fully adjustable for different angular positions depending upon variable cylinder diameter. The unit oscillates on four linear motion bearings and hardened shaft to minimize the friction and at the same time to reduce the gear box load. The special sturdy construction of Doctor Blade unit ensures superior printing quality.

Rollers

All Idler Rollers are dynamically balanced and made of high grade aluminium material.

Drying Hood

To ensure efficient and complete drying of web, every printing station comprises an independent drying hood mounted vertically.

Special Features:- Gravure Printing Machine

Impression Rollers, Dryers, Doctor Blades, In Feed & Out Feed nips are pneumatically actuated.

For linear registration control, each printing station has a motorized linear compensator assembly.

Drying Hoods have specially designed Air Splitting System comprising Air Nozzles in such a way that each nozzle row faces an idler roller beneath and an additional drying hood on top of printing station.

Multi drive controls are used to control proper sectional tension ensuring high quality production at maximum speed.

Un-winder/Re-winder systems have special shaft less hydro coupling and lifting arrangements through hydraulic cylinders for easy loading and unloading operations.

Optional Items
Web viewing system (Web Video)

Auto registration control system.

Ink circulating pumps.

Auto splicing turret system at U/W and R/W.

Touch Screen MMI for controlling the whole machine from single point.
